TL725D IP67 MEMS Angle Sensor For Digital Farming Machinery

Name: TL725D IP67 MEMS Angle Sensor For Digital Farming Machinery
Brand: Rion
Price: 60.00 USD

China TL725D IP67 MEMS Angle Sensor For Digital Farming Machinery wholesale

Model Number : TL725-232

Place of Origin : Guangdong, China

Brand Name : Rion

Packaging Details : 1pcs/box with sponge inside, 100pcs/ctn

Supply Ability : 3000 Piece/Pieces per Month

Price : $60.00/Pieces >=1 Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T,Paypal

Delivery Time : 7 days for samples

Usage : Position Sensor

Output : Digital Sensor

Item : Gyro heading sensor

Dimension : 62*54*20mm

Weight : 140g

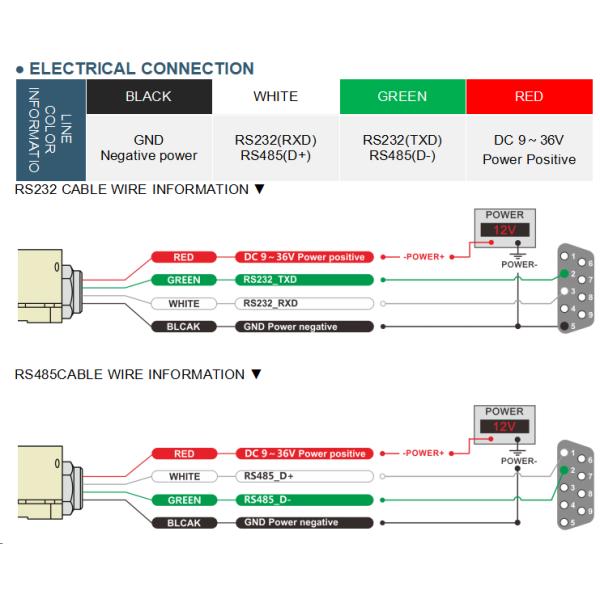

Connector : RS232/RS485

Power supply : 9~36v

MTBF : >50000 hours/times

Zero bias instability of gyro : 4.0deg/h

resolution : 0.01deg

water proof : IP67

Port : Shenzhen

Contact Now

TL725D IP67 MEMS Angle Sensor For Digital Farming Machinery

Product Overview

TL725D – High-Performance IMU Gyroscope for Agricultural Vehicle Navigation

TL725D is a high-precision gyroscope IMU designed specifically for automatic navigation of agricultural vehicles.
Equipped with an industrial-grade three-axis gyroscope and three-axis accelerometer, TL725D delivers stable and smooth attitude data even under strong vibration environments.

Built on an advanced MEMS inertial measurement platform and dynamic attitude algorithm, it provides real-time outputs of:

Dynamic inclination angle
Horizontal azimuth angle
Three-axis angular rate
Three-axis acceleration
Forward-axis body acceleration

In addition, TL725D supports Z-axis single-axis integration, enabling real-time counting feedback to precisely control front-wheel turning — ensuring accurate steering for automatic agricultural machinery.

Designed for precision and efficiency, TL725D has become an essential component in next-generation intelligent agricultural equipment.

FEATURES

★ Real-time horizontal azimuth and attitude angle output
★ Real-time angular rate and acceleration output
★ High vibration resistance with excellent long-term stability
★ Forward-axis acceleration feedback for steering accuracy
★ Compact, lightweight, and all-solid-state design
★ Wide voltage input: DC 9–36V
★ Long service life and strong reliability

TL725D IP67 MEMS Angle Sensor For Digital Farming Machinery

PRODUCT SPECIFICATIONS

TL725D		PARAMETERS
Three-axis attitude		Azimuth ±180°, Roll angle±180°, Pitch angle±90
Bandwidth		>100Hz
Nonlinear		0.1% of FS
Three-axis gyroscope	Gyro Range	250°/s
	Angle random walk coefficient (allan)	0.25°/sqrt(h)
	Bias stability mg (10s smooth)	8.5°/h
Three-axis acceleration	Range	±4g
	Resolution	0.001g
	Accuracy	1mg
	Bias instability°/h (allan)	0.05mg
	Speed random walk coefficient (allan)	0.015m/s/sqrt(h)
	Bias stability°/h(10s average)	0.15mg
Startup time		500ms
Input voltage		+9~36V
Current		35mA(12V)
Working temp.		-40 ~ +80℃
Storage temp.		-40 ~ +85℃
Vibration		5g~10g
Shock		200g pk, 2ms, ½sine
Working life		10 Year
Output frequency		1Hz~200Hz Settable
Output signal		RS232 / RS485 / (Optional)
MTBF		≥98000 Hours/times
Insulation resistance		≥100MΩ
Shockproof		100g@11ms/3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms/10～1000Hz
Protection grade		IP67
Cable		Standard 1 m 4 pin shield wire
Weight		≤160g (including 1 meter cable)

Application

★ Automatic agricultural vehicles
★ Precision farming systems
★ Combine harvesters
★ Tractors and other farming machinery
